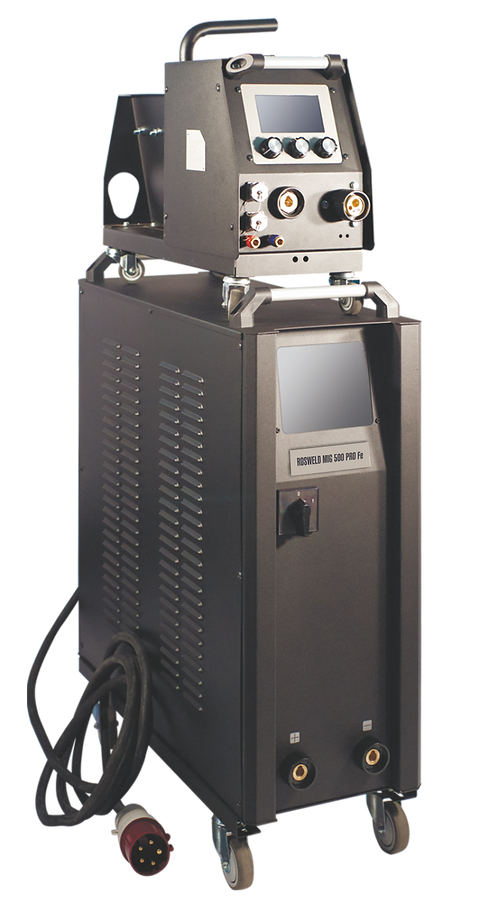

MIG/MAG

ELECTRIC ARC SEMI-AUTOMATIC WELDING

SPECIFICATIONS
STANDARD PACKAGE
  • welding power source

  • wire feeder

  • cable package 1.5 m

  • wheels

WELD WEB

System of network

control

System controlling

consumption of gas

Cooling unit

Energy efficiency

ABOUT ROSWELD MIG/MAG
  • Simple and digital torchs;

  • Option of manual control of welding parameters outside synergetic mode;

  • Welding modes for dots and tacks;

  • 2 cycle, 4 cycle welding modes;

  • Programs for root welds and thin materials;

  • DAC (Direct Arc Control) —short circuit control;

  • Program for compressed jet arc, with deep penetration (jet arc);

  • Special mode for vertical welds (rapid up);

  • Option of integrating hybrid processes;

  • Function of hot or soft start and crater filling;

  • Option of working in TIG Lift, ММА and gouging modes;

  • Color screen 5” with color selection on panel subject to lighting intensity and time of day;

  • Interactive intuitive control panel with remotely updated firmware;

  • Wi-Fi for documenting modes, re-programming, and identifying personnel;

  • Galvanised long-life body  and high duty trolley;

  • Air or water cooling of the torch;

  • Remote control panel;

  • PRO version: synergetic programs for stainless and other steels, aluminum and programs with controlled transfer of electrode material without short circuit (pulse);

  • Large diameter trolley wheels.

WELDING MODES
  • NORMAL- standard  process of semiautomatic welding with short circuits;

  • ROOT- welding process by short “cold” arc, optimal choice for welding of root welded seams and thin metal sheets;

  • JET ARC - welding process by dynamic concentrated long arc with deep penetration and capability of forming of backward bead welded seam

  • DAC-MD - (Direct Arc Control Modulation) — welding mode with control of short circuits and pulse modulation for current, that ensures higher speed of welding , minimal splashes and lower heat input, if to compare with Normal mode;

  • ROOT-MD - welding mode with using of pulse modulation for current for root welded seams, enables forming of flush backward bead welded seam while welding is vertically from top downward;

  • R-PIPE - mode for welding of root welded seams and parts with increased clearance with guaranteed forming of backward bead;

  • PULSE - Pulse welding mode. Ensures quality forming of welded seam without additional arm moving of welding operator (‘’herring-bone’’,“half-moon” and etc.), no splashes and high efficiency.

SOFTWARE MODIFICATIONS

BASIC

  • Synergetic control

  • 100 cells in long time memory

  • ROOT weld mode

  • ROOT weld mode with modulated current [optional]

  • Deep welding (only more 3 modular modifications)

  • Direct arc control DAC [optional]

  • Manual arc welding mode

  • Gouging mode

PRO Fe
  • Synergetic control

  • 100 cells in long time memory

  • ROOT weld mode

  • ROOT weld mode with modulated current

  • Deep welding (only more 3 modular modifications)

  • Direct arc control DAC

  • Manual arc welding mode

  • ​Gouging mode

  • Arc-Pulse programs for steels

PRO Al
  • Synergetic control

  • 100 cells in long time memory

  • ROOT weld mode

  • ROOT weld mode with modulated current

  • Deep welding (only more 3 modular modifications)

  • Direct arc control DAC

  • Manual arc welding mode

  • ​Gouging mode

  • Arc-Pulse programs for steels

  • Arc-Pulse programs for aluminums alloys

CONTROL PANEL
